Adaptor DC 24 Volt
220v to 24v adapter with black,gray,white case
Power adapter with high efficent voltage
Power cord with battery charger
Description
Description
24 volt 1.5 amp adapter is generally composed of case, power transformer and rectifier circuit. According to its output type, it can be divided into AC output type and DC output type; According to the connection mode, it can be divided into wall type and desktop type.
Techinical parameter
Input Specification | Electrical | Tests Environmental |
Voltage: 100-240VAC | Voltage Accuracy: ±3% | Hi-pot Test: 3750VAC, 60S, 5mA max |
Frequency: 50-60Hz | Current Accuracy: ±3% | Lightning surge: up to 1000V (accept 3000V) |
Output Specification | Efficiency:ERP | Leakage Current: 0.25mA max |

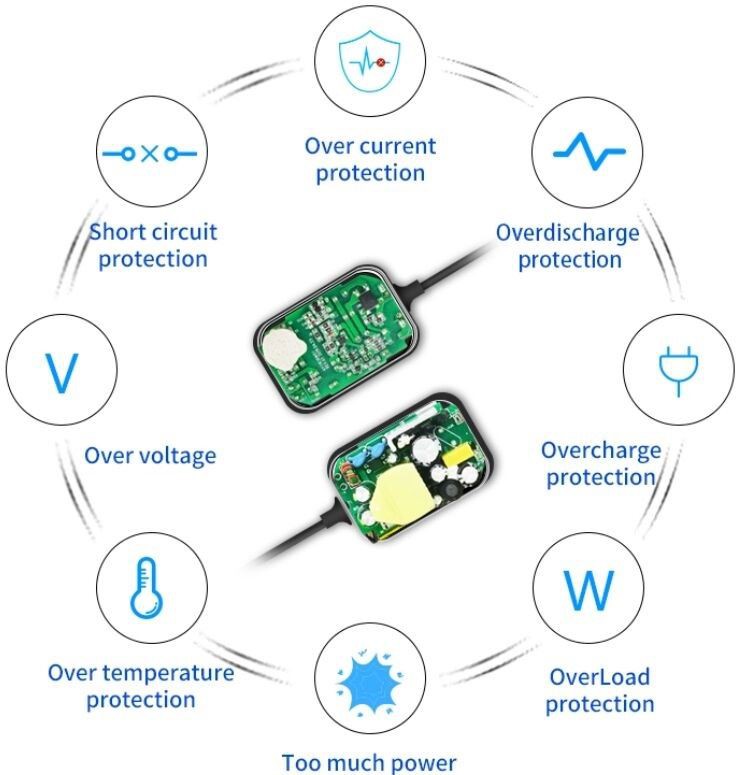

Voltage:24V | Securityprotection: SCP,OVP,OCP,OTP | Burn-in Test: rate load, 40±3℃, 4 hours |
Current1A-10A | Turn On Time:15-30mS | Operating Temperature:0-40℃ |
Power:Customized | Burn-In Test：100% Full Load | Storage Humidity 5%-95%RH
|
Product details
Application: Commonly Adaptor DC 24 volt for massager,24v 2a dc power supply for 5G equipment applications
Voltage: 220V 50Hz-60Hz
MOQ: 500 Units -1000units
Features/Equipment characteristics
1) Quality case with ROHS Certificate
2) Support Interchangeable plug, EU, UK, US, AU, KR, JP, and CN Optional
3) Passed global certificates such as PSE,UL,KC,UK
4) Support customized Label and DC connector.
FAQ
WHAT ABOUT PRODUCT WARRANTY OR RETURN POLICY ?
(1) we will offer spare item for bulk order
(2) we will send better products direct from our factory when confirmed defaultly ones
(3) Send the better products with next bulk order after confirm the quantity of faulty ones .
If you have any better solutions please share with us .
Hot Tags: adaptor dc 24 volt, China, suppliers, factory, customized, price, for sale, 24V Led Adapter
