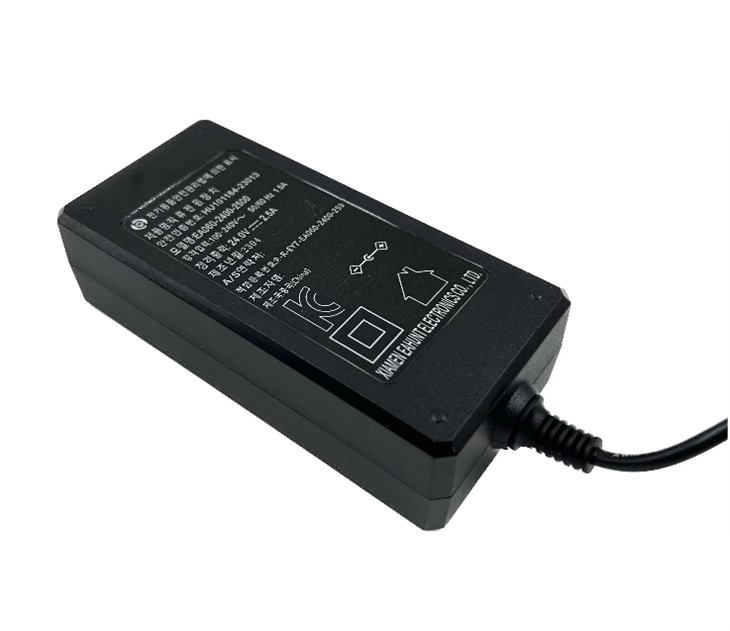

Power Adapter For Laptop

A power adapter is a device that converts AC power into the required DC voltage, and it is widely used in various digital devices. When using a power adapter, you need to pay attention to its interface type and size to ensure that the adapter can be properly connected to the device.

1. How many types of interfaces are there for power adapters?
Depending on the device and voltage level, there are differences in the interface types of power adapters. The common power adapter interface types on the market are as follows:

Interface 1: Circular interface (DC)
This interface is usually used on devices such as laptops, routers, and handheld game consoles. This interface is usually designed with a large head with a diameter of 5.5 mm and a small head with an inner diameter of 2.1 mm, or a large head with a diameter of 5.5 mm and a small head with an inner diameter of 2.5 mm. The polarity of the small header is usually positive on the inner ring and negative on the outer ring.

Interface 2: Rectangular (USB)
This interface is usually used on devices such as smartphones, tablets, and mobile power. This interface usually uses modes such as USB-A and USB-C to support charging and data transfer functions.

Interface 3: Flat Interface (Mac)
This interface is usually used on devices such as Apple laptops and monitors. This interface utilizes a unique MagSafe design that allows for automatic attachment and fast charging when connected.

2. How do I look at the interface size of a power adapter?
When shopping for a power adapter, you need to pay attention to whether the size of the adapter interface matches the interface of the device. The specific ways to check are as follows:

Method 1: Check the device manual
The device manual usually describes in detail the type of power adapter required and the corresponding interface size. Users can follow the instructions on the manual for purchase.

Method 2: Measure the device interface
If there is no device manual or you are not sure of the type and size of the device interface, you can use calipers or straightedge and other tools to measure. The specific steps are as follows:

Use calipers or straightedge to measure parameters such as the outer diameter, inner diameter and depth of the device interface.
Before the power adapter is purchased, use the same standard tool to measure the outer and inner diameters of the adapter's output port to ensure that it matches the device interface.
In conclusion, when purchasing a power adapter, we need to understand the different interface types and sizes and choose one based on our actual needs and device requirements. If you are not sure how to do it, it is recommended to seek professional help and guidance.
