Sub PCBA

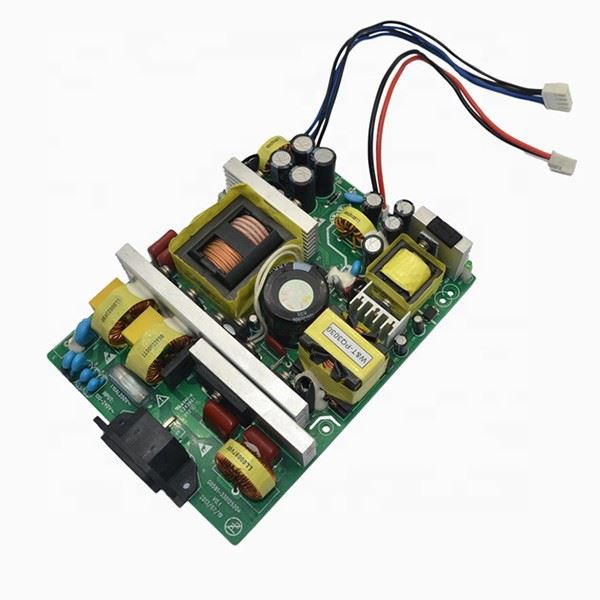

Medical Switching Open Frame Power Supply With PFC
Open frame power adapter for swtiching adapter
Pcba electronics for home appliance application
Description
Description
Pth assembly Open power supply is a compact and customizable way to supply power for various electronic devices. It is often used in a variety of environments. Common areas include communications and computing environments,Sub PCBA as well as industrial, medical, and laboratory settings. Most open frame power supplies are compatible with voltage regulators and have DC inputs
| MODEL | GF50-1B-DE | |
| OUTPUT | DC VOLTAGE | 24V |
| OUTPUT POWER | 48W | |
| CURRENT RANGE | 0-2A | |
| RIPPLE & NOISE(max.) | 240mVp-p | |
| VOLTAGE ADJ. RANGE | ±10% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| VOLTAGE TOLERANCE | ±2.0% | |
| CONNECTION TERMINAL | DC+, DC- | |
| SETUP,RISE TIME | 800ms, 50ms at full load | |
| HOLD UP TIME | 60ms | |
| INPUT | VOLTAGE RANGE | 86 ~ 264VAC |
| AC CURRENT(Typ.) | 0.35A/ 226VAC 0.18A/ 240VAC | |
| CONNECTION TERMINAL | AC-L,AC-N | |
| FREQUENCY RANGE | 47-63Hz | |
| EFFICIENCY(Typ.) | 82% | |
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |
| LEAKAGE CURRENT | <0.75mA/240VAC | |
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down,auto recovery |
| OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protecion | |
| Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||
| SHORT CIRCUIT | voltage off and reset input for recovers | |
| ENVIRONMENT | WORKING TEMP. | -0℃ ~ +45℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ | |
| COOLING METHOD | BY FREE AIR CONVECTION | |
| SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |
| EMI CONDUCTION | Compliance to EN55022 | |
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 |
Most open rack power supplies can be connected to the digital input (DIN) rails. In order to save space inside or outside the equipment, DIN rails are usually used to install electrical components in a unit. They have standard connections, so many different electronic components can be connected to them to meet the needs of users.
Another component often used with jlc smt assembly open frame power is the voltage regulator. These components include a simple analog electronic device, which can maintain a stable power flow from the power supply to the intended destination. They can also change the amount of voltage received by the electronic device as needed. Voltage regulators are important in most applications of open power supply, because inconsistent voltages can lead to inaccurate laboratory results, damage to computer hardware, and potentially hazardous reactions in medical and industrial environments.
