Adapter 24v 0.5 A

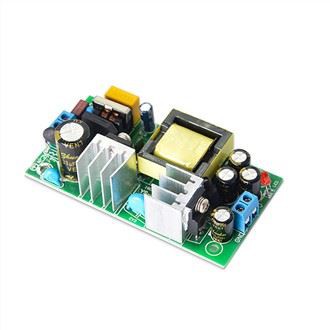

24V open frame power supply
open frame power supply for medicial

Description

Power board has a complete shell, which is because the public's interpretation of the film version is relatively narrow, but the bare board power supply now puts aside the component of the previous external shell and provides power for the equipment in a more straightforward and bare state. In the actual application process, it is necessary to meet the needs of the common power supply. Through the following two points, we can see the advantages of the template power supply.

Techinical parameter

Input Specification	Electrical	Tests Environmental
Voltage: 100-240VAC	Voltage Accuracy: ±3%	Hi-pot Test: 3750VAC, 60S, 5mA max
Frequency: 50-60Hz	Current Accuracy: ±3%	Lightning surge: up to 1000V (accept 3000V)
Output Specification	Efficiency:ERP	Leakage Current: 0.25mA max
Voltage:10V-120V	Securityprotection: SCP,OVP,OCP,OTP	Burn-in Test: rate load, 40±3℃, 4 hours
Current:1A-10A	Turn On Time:15-30mS	Operating Temperature:0-40℃
Power:customized	Burn-In Test：100% Full Load	Storage Humidity 5%-95%RH

Products details

Excellent air permeability

At present, the ordinary power supply board on the market has a large shell, so relatively speaking, the problem of this kind of ordinary power supply is that it is prone to explosion due to excessive heating and unable to dissipate heat in time. However, the bare board power supply will cause other problems due to insufficient heat dissipation due to its permeability and fast heat dissipation. In the past, the shell was valued in the market, It is considered that the integrity of the design is more important, but the subsequent tests and technical breakthroughs have proved that the bare form does not affect the safety of application. And it has better heat dissipation function, which can effectively solve the heat dissipation problem.

24v dc connector
